15 hp Shaft 25 mm

LONCIN OHV-type engine features lower operating temperature, powerful drive, and reliability and durability.Cast iron housing not only effectively improves lubrication, but also makes the motor more resistant to wear and extends the life of the engine. Automatic low oil alarm, so it prevents the engine from running when the oil level is low and gives more protection to the engine, metal cams and forged engine crankshaft makes the engine more reliable and durable.

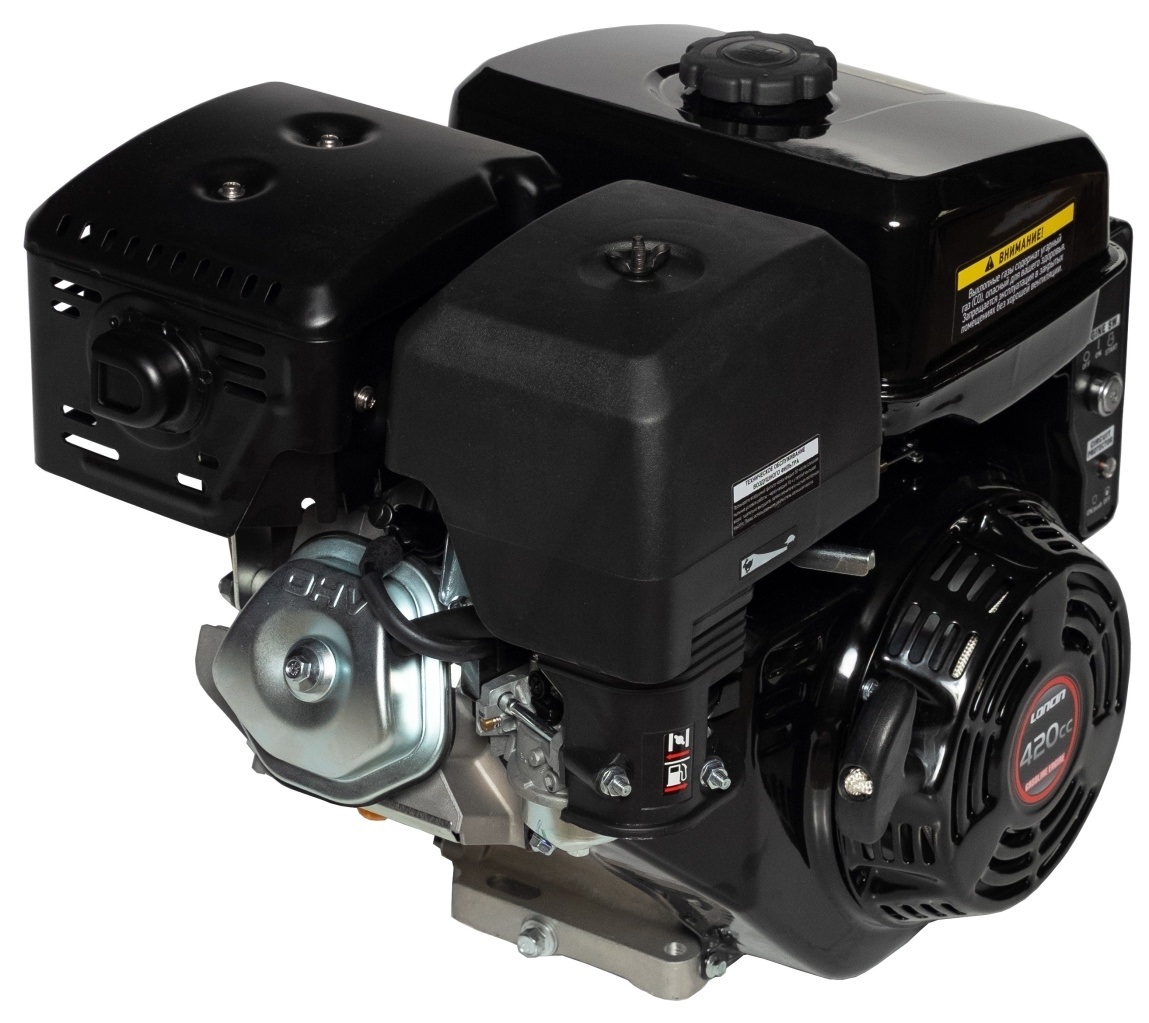

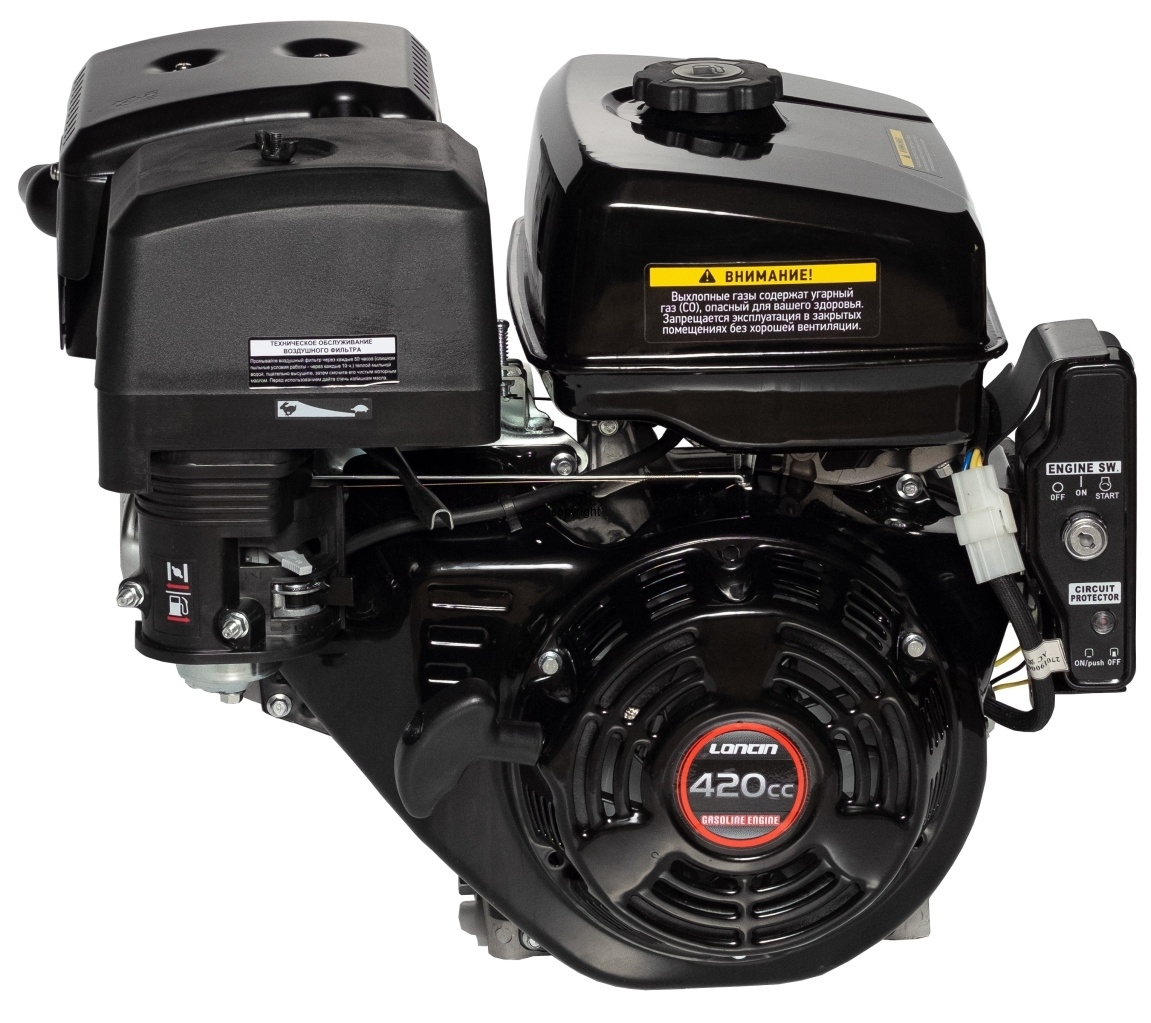

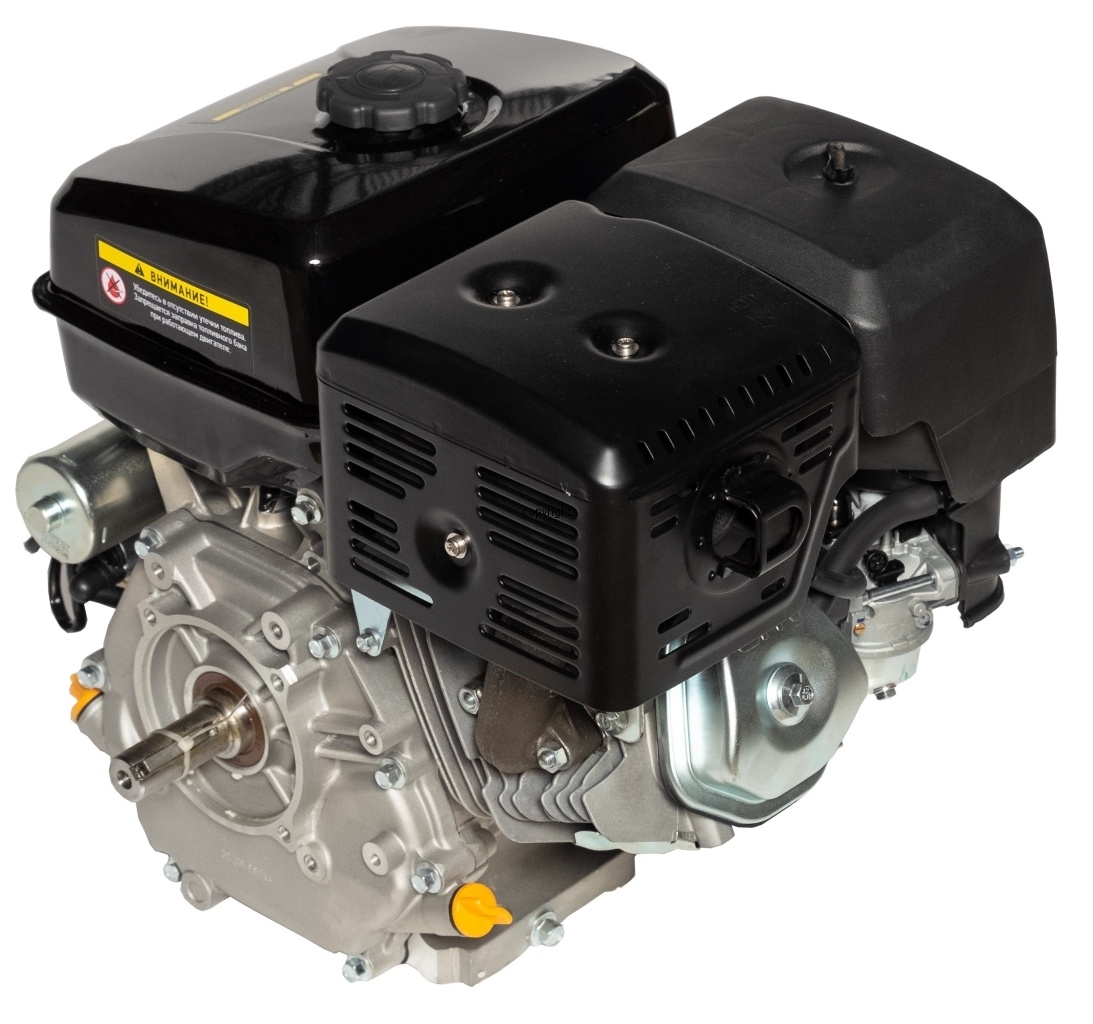

This well-proven, reliable and economical Loncin G420FDA is an ideal replacement for the Honda GX390 engine with 25mm diameter output shaft with electric starting.

Key features of G-series engines:

G series motors are characterized by high efficiency, compact design and high reliability.

• gasoline four-stroke, air-cooled upper-valve technology(OHV),
• lightweight, compact engine design,
• cast iron cylinder sleeve,
• oil level sensor to prevent damage when the oil level is too low,
• air filter

Application:

• Concrete trowels.
• Soil Compactors.
• Generators
• Cutters
• Water pumps
• Cultivators
• Shredders
• Construction equipment
• Gardening equipment
• etc.

PARAMETERS:

• Status - new
• Manufacturer - LONCIN
• Model - G420FD-A
• Version with Electric Starter : YES
• Additional Traditional Manual Starter : YES
• Engine type - gasoline, single-cylinder, four-stroke, overhead-valve (OHV), air-cooled
• Power - 15.0 HP / 3600 rpm
• Torque - 26,5 N.m
• Displacement capacity - 420 cc
• Lubrication system capacity - 1,1 L
• Fuel tank capacity - 6,5 L
• Shaft diameter - 25.00 mm
• Shaft length - 60 mm
• Weight without liquids - 34 kg
• Gully under wedge - rectangular along the entire length of the shaft with a width of 4.78 mm
• Oil level sensor - yes
• Ignition switch - yes
• Dimensions (L. x Width. x Wys.) - 450x405x443 mm
• Cast iron engine bushing
• Bearing Shaft
• Charging coil

The LONCIN G420F engine is the Equivalent of the HONDA GX420 engine

THE PRODUCT COMES FROM THE OFFICIAL DISTRIBUTION TO THE POLISH MARKET !

NOTE: The LONCIN engine is packaged without oil, so it is necessary to pour oil before the first use and it is recommended to read the instruction manual.
